D Ring Tie Down Anchor For Camping Trailer
D Ring Tie Down Anchor For Camping Trailer
D Ring Tie Down Anchor For Camping Trailer
D Ring Tie Down Anchor For Camping Trailer
D Ring Tie Down Anchor For Camping Trailer

D Ring Tie Down Anchor For Camping Trailer

Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10000 Piece/Pieces
Delivery Time: 35 Days

Contact Now Add to Basket

Basic Info

    Model No.: KMPF2010

    Surface / Color: Zinc Plated

    Application: Trailer Part, Truck Part Or Others

    Type: Recessed D Ring Tie Down Pan Fitting

Additional Info

    Packaging: Export Standard Carton

    Productivity: 100,000 Pieces per Month

    Brand: KINMAN

    Transportation: Ocean,Air

    Place of Origin: CHINA

    Supply Ability: 100,000 Pieces per Month

    Port: NINGBO

Product Description

Pan Fitting / One Way Lashing Buckle


Recessed Tie Down Anchor Kit With Long D Ring

Pan fitting is made of Alloy Steel (or Carbon Steel) with a corrosion-resistant durable zinc plated finish.

Raw Material: High Strength Alloy Steel, or Carbon Steel. (We can also customize according to Customer's Requirment.)

Processing Flow:

1st Step:
D Ring : Stamping the Steel Wire Rod → Bending → Welding → Flat Forming → Polishing

Round Bracket: Punching → Chamfering → Polishing

Stamping the ring Fixing Bracket→ Assemble the D Ring onto the Ring Fixing Bracket and Round Bracket → Welding → Zinc Plated

2nd Step:
Spring Plate: Stamping (Spring Steel) → Polishing → Zinc Plated
bolt : Cutting (Alloy Steel hexagonal bar) → Machining → Thread Rolling → Zinc Plated
Hexagon nut: Cutting (Alloy Steel hexagonal bar) → Machining → Tapping → Zinc Plated

Final Step:
Assembling and packing.


Machines:

1. Punching press machine (High power precision stamping machine);

2. Stamping and marking machine (Laser marking machine);

3. CNC Machine;

4. Cutting Machine;

5. Thread Rolling Machine;

6. Tig Welding Machine;

7. Tapping Machine;

8. High power drilling machine;

9. Vibratory polishing machine;


Installation:
Try to choose a versatile tie-down spot that will be convenient for all kinds of loads, corners of truck beds and Trailers are often optimal. Try to choose a versatile tie-down spot that will be convenient for all kinds of loads, corners of truck beds and trailers are often optimal.
Place the mounting backplate down on the area where you want to install the D ring and use the mounting holes to draw diagonal lines so that you get a perfectly centered spot.
Use the center spot to cut a hole using a hole saw and/or chisel. Be careful to double-check all applicable dimensions before cutting.

If you are using a mounting plate, insert it on the Trailer underside and secure your tie-down anchor with bolts , washers, and lock nuts.
Fix and install the tie-down anchor on the surface.

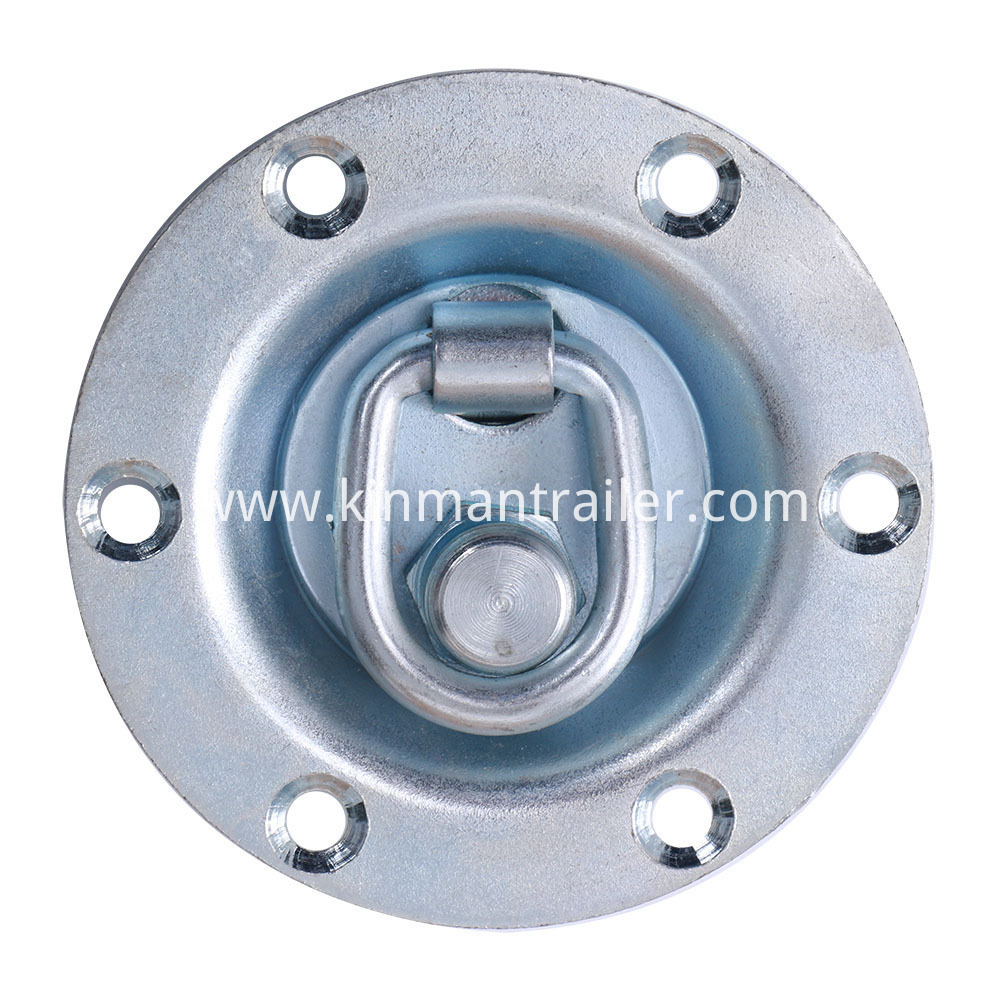

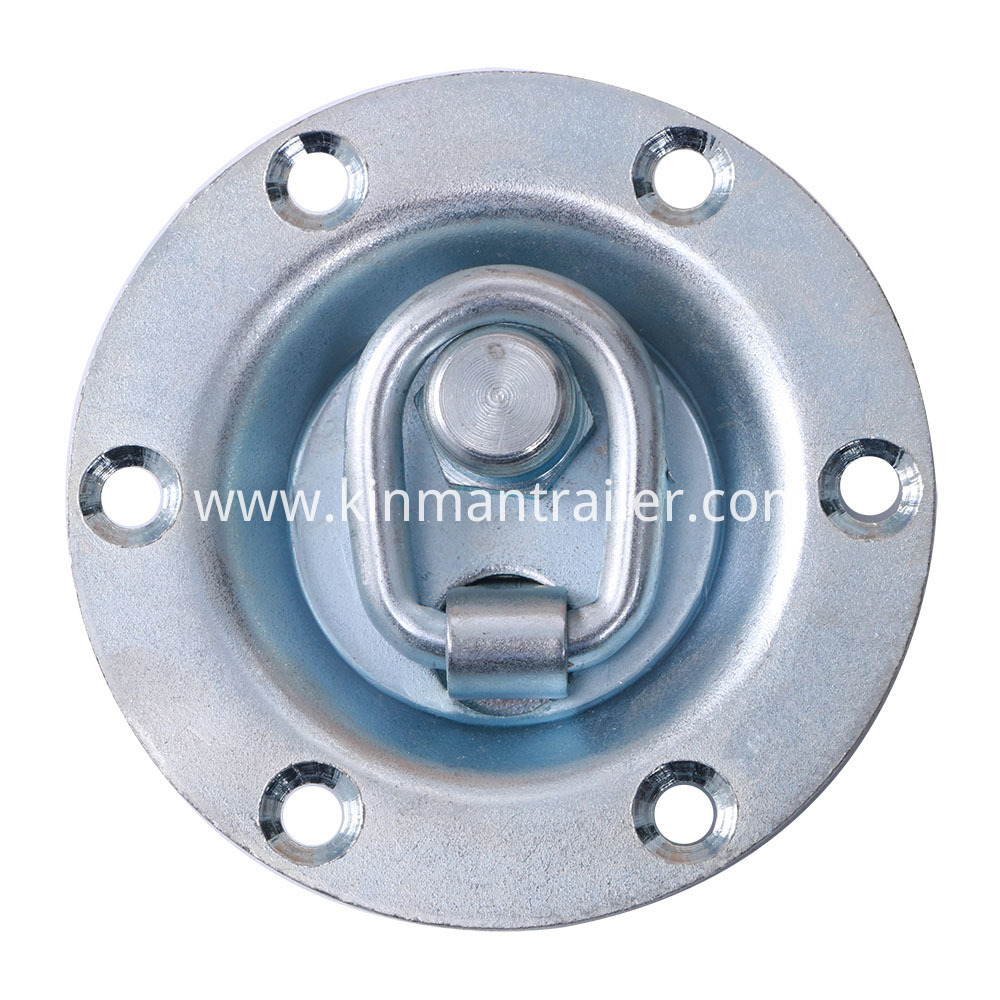

Product Picture:

1010 2

All 2All 3All 1

All Pf

Application:

pf app-01

pf app-2

pf app-02

pf app-3

Looking for ideal Deadline Tie-down Anchor Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Brophy D-ring Tie Down Anchor are quality guaranteed. We are China Origin Factory of D Ring Tie Down Anchor. If you have any question, please feel free to contact us.

Product Categories : Trailer Parts > Pan Fitting (Rope Ring)
