Pan Fitting Tie Down Anchor For RV Trailer
Pan Fitting Tie Down Anchor For RV Trailer
Pan Fitting Tie Down Anchor For RV Trailer
Pan Fitting Tie Down Anchor For RV Trailer
Pan Fitting Tie Down Anchor For RV Trailer

Pan Fitting Tie Down Anchor For RV Trailer

Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10000 Piece/Pieces
Delivery Time: 35 Days

Contact Now Add to Basket

Basic Info

    Model No.: KMPF2012

    Surface / Color: Zinc Plated

    Application: Trailer Part, Truck Part Or Others

    Type: Recessed D Ring Tie Dwon Anchor

    Max Breaking Strength: 1200 Lbs

Additional Info

    Packaging: Export Standard Carton

    Productivity: 100,000 Pieces per Month

    Brand: KINMAN

    Transportation: Ocean,Air

    Place of Origin: CHINA

    Supply Ability: 100,000 Pieces per Month

    Port: NINGBO

Product Description

Pan Fitting / One Way Lashing Buckle


Recessed Tie Down Anchor With D Ring

Pan fitting is made of Alloy Steel with a corrosion-resistant durable zinc plated finish.

Raw Material: High Strength Alloy Steel, or Carbon Steel. (We can also customize according to Customer's Requirment.)

Processing Flow:

1st Step:
D Ring : Stamping the Steel Wire Rod → Bending → Welding → Flat Forming → Polishing → Marking (Or Without Marking As Per Customer's Requirement)

Bracket: Punching → Polishing

2nd Step:
Assembling D ring onto the Bracket and Stamping → Zinc Plated

Bottom plate: Punching → Polishing → Zinc Plated

Final Step:
Riveting Assembling the bottom plate onto the Bracket; Packing.

Machines:

1. Punching press machine (High power precision stamping machine);

2. Stamping and marking machine (Laser marking machine);

3. Automatic Steel Wire Rod Stamping Machine;

4. Vibratory polishing machine (or Centrifugal Polishing Machine, or Electro-polishing Machine);

5. High Power Welding Machine (Europe Tig Welding Machine);

6. Rivet Maching;


Installation:
Try to choose a versatile tie-down spot that will be convenient for all kinds of loads, corners of truck beds and Trailers are often optimal. Try to choose a versatile tie-down spot that will be convenient for all kinds of loads, corners of truck beds and trailers are often optimal.
Place the mounting backplate down on the area where you want to install the D ring and use the mounting holes to draw diagonal lines so that you get a perfectly centered spot.
Use the center spot to cut a hole using a hole saw and/or chisel. Be careful to double-check all applicable dimensions before cutting.

If you are using a mounting plate, insert it on the Trailer underside and secure your tie-down anchor with bolts , washers, and lock nuts.
Fix and install the tie-down anchor on the surface.

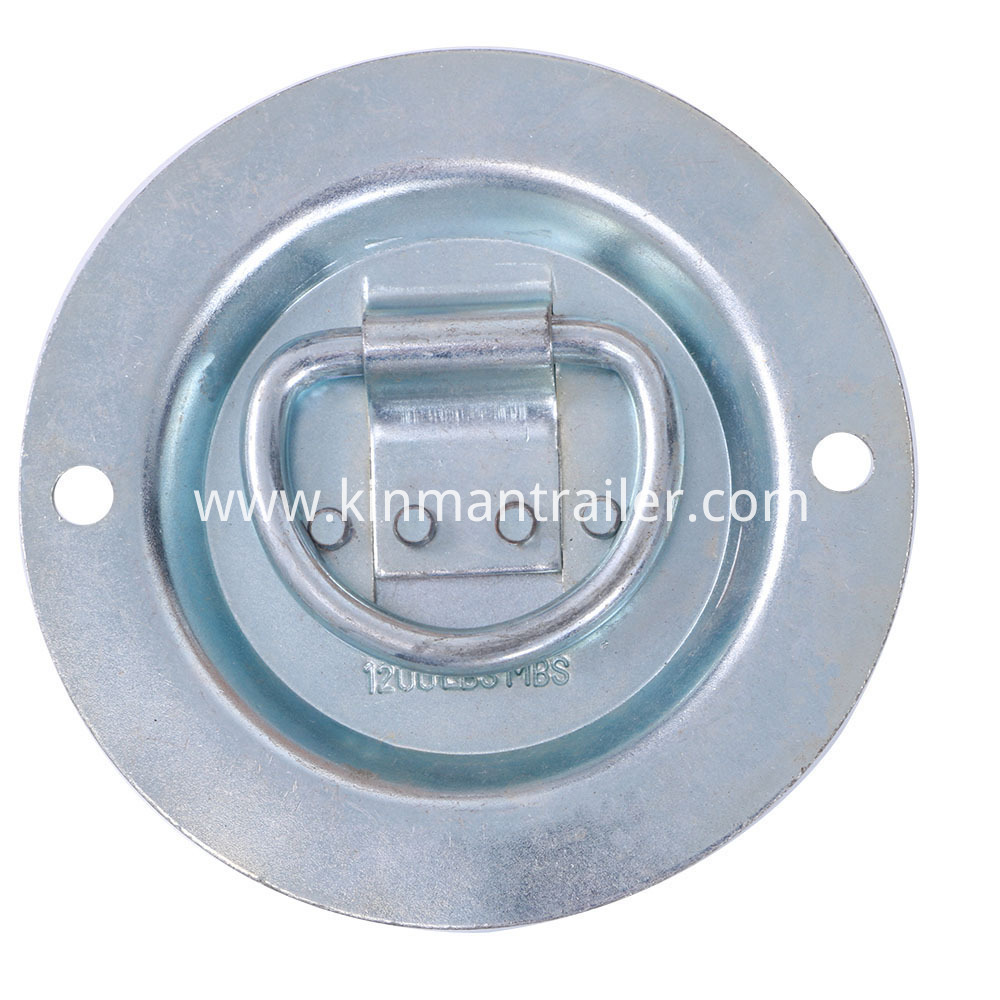

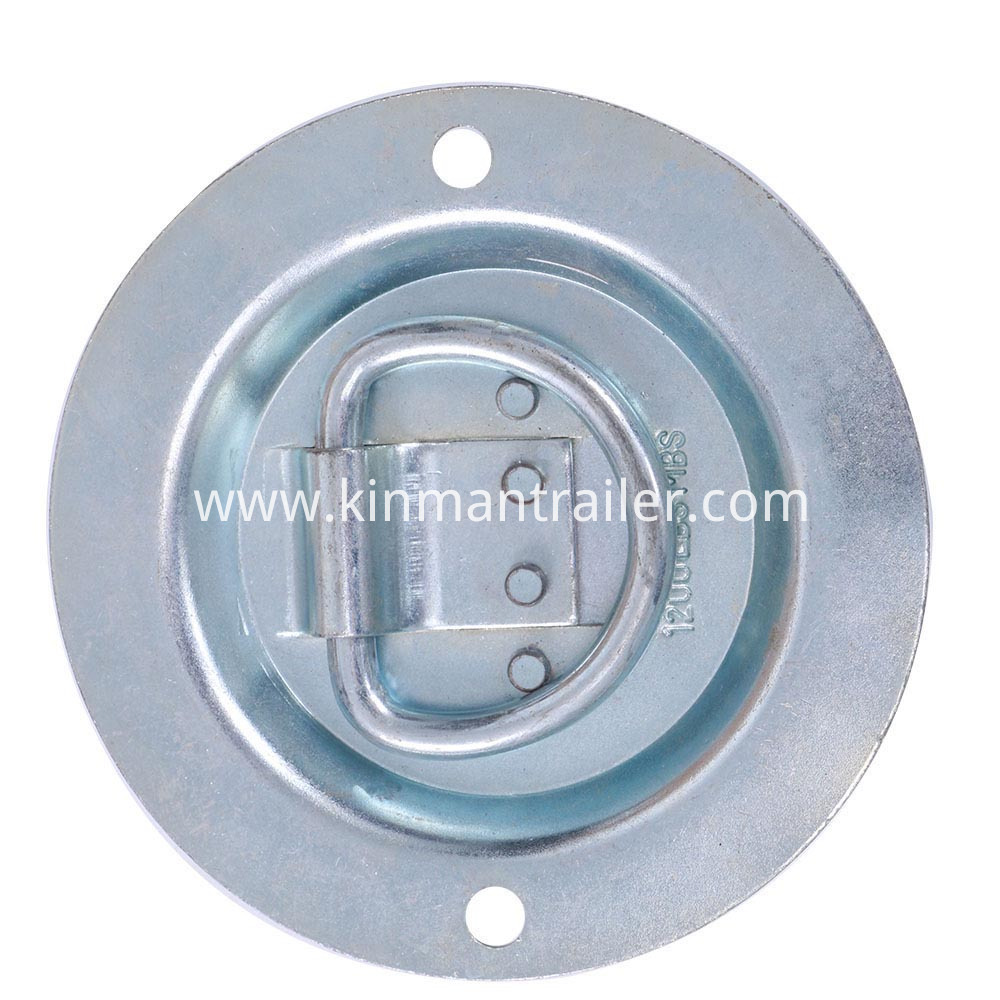

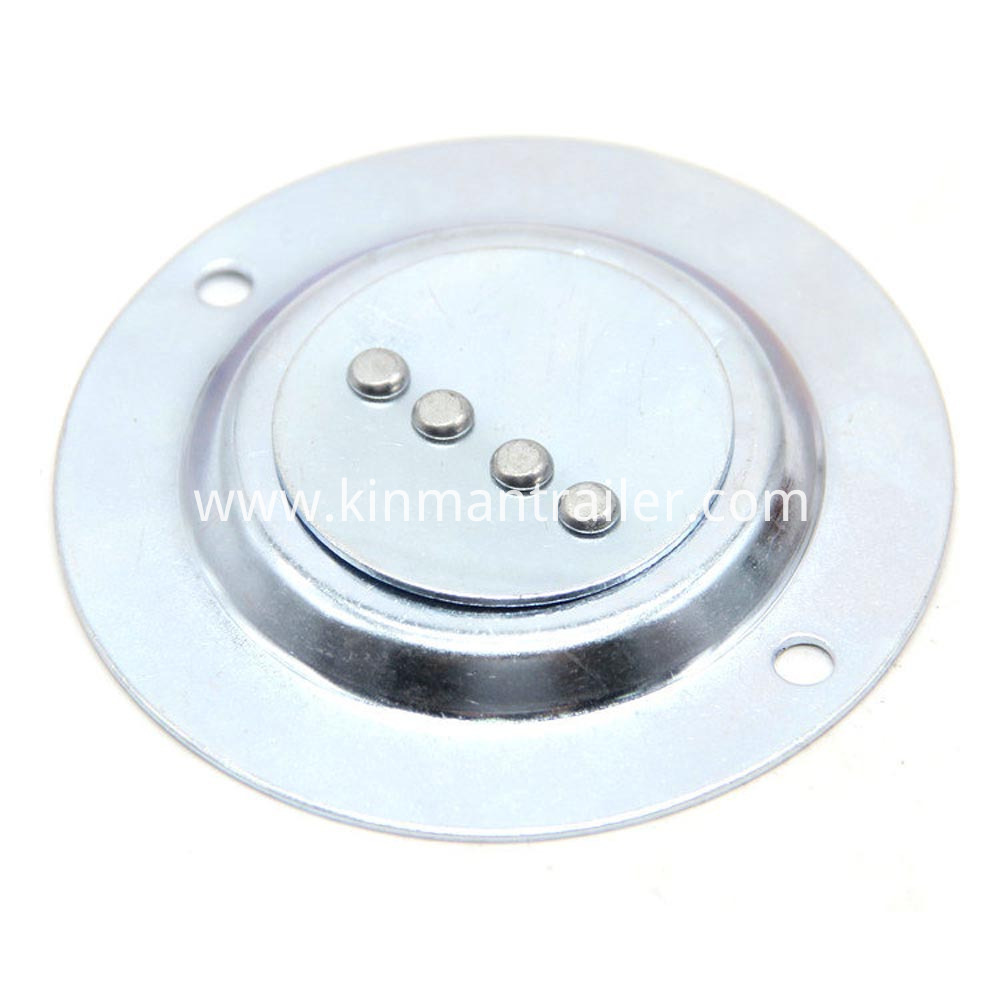

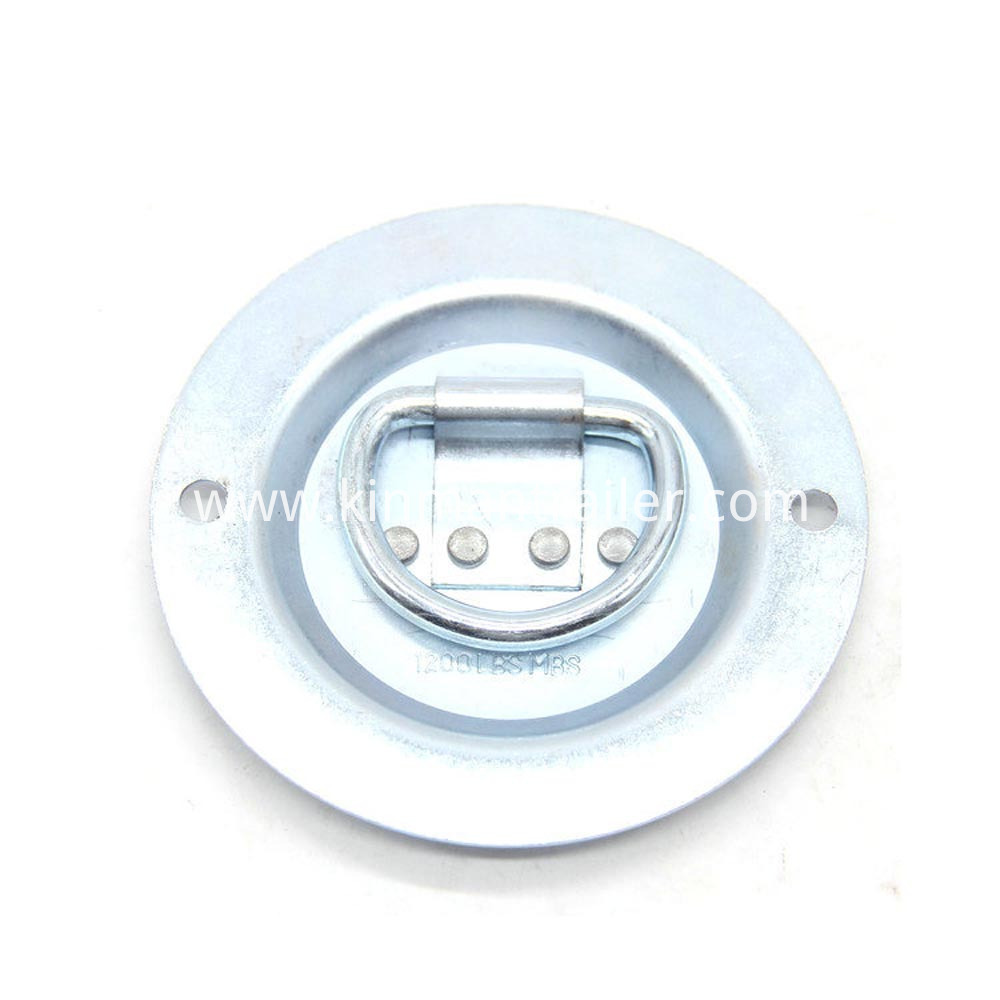

Product Picture:

1212 212 512 412 6

All 2All 3All 1

All Pf

Application:

pf app-01

pf app-2

pf app-02

pf app-3

Looking for ideal Tie Down Earth Anchors Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Tie Down Engineering Earth Anchor are quality guaranteed. We are China Origin Factory of e track Tie Down Anchors. If you have any question, please feel free to contact us.

Product Categories : Trailer Parts > Pan Fitting (Rope Ring)
